80mm Screw Diameter Automatic Blow Moulding Machine for In Mold Labeling HDPE LDPE PP

चीन Ningbo Qiming Machinery Manufacturing Co., Ltd. प्रमाणपत्र
चीन Ningbo Qiming Machinery Manufacturing Co., Ltd. प्रमाणपत्र
मेपर मशीन का सबसे बड़ा लाभ बिना किसी चिंता के बहुत स्थिर है। हमारी कुछ मशीनें 10 वर्षों से उपयोग में हैं और अभी भी सामान्य उपयोग में हैं। मेपर मशीन महान है।

—— जोस (ब्राजील)

मुझे उनकी सेवा के कारण मेपर मशीनें पसंद हैं। वे हमेशा समय में हमारे लिए समस्याओं का समाधान करते हैं, इसलिए मैं मेपर मशीन की अत्यधिक अनुशंसा करता हूं।

—— कुमार (भारत)

मेपर मशीन बहुत अच्छी है। हालांकि हमारा देश बहुत गर्म है, मशीनें बहुत तेजी से काम करती हैं।

—— मोहम्मद (सऊदी अरब)

मेपर मशीन बहुत अच्छी है। Хорошо

—— IWANOWSKI (रूस)

मेपर, अच्छी मशीन, अच्छी सेवा।

—— जॉन (दक्षिण अफ्रीका)

मैं अब ऑनलाइन चैट कर रहा हूँ

80mm Screw Diameter Automatic Blow Moulding Machine for In Mold Labeling HDPE LDPE PP

80mm Screw Diameter Automatic Blow Moulding Machine for In Mold Labeling HDPE LDPE PP
80mm Screw Diameter Automatic Blow Moulding Machine for In Mold Labeling HDPE LDPE PP

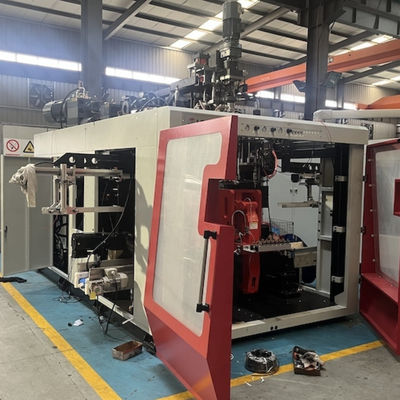

बड़ी छवि :  80mm Screw Diameter Automatic Blow Moulding Machine for In Mold Labeling HDPE LDPE PP

उत्पाद विवरण:
ब्रांड नाम: MEPER
प्रमाणन: CE/ISO9001:2008
Model Number: MP75FD
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1set
मूल्य: Price Negotiation.
Packaging Details: Standard Export Package
Delivery Time: 25-35 Work Days
भुगतान शर्तें: एल/सी,टी/टी
Supply Ability: 100 Sets Per Month
विस्तृत उत्पाद विवरण
डाई हेड नंबर: 1/2/3/4 विशेषता: हाई बैरियर बोतलें
आईएम एल: मोल्ड लेबलिंग में लागू सामग्री: एचडीपीई एलडीपीई पीपी
उपयुक्त: 0-5L बोतल पेंच हीटिंग क्षमता: 6KW
पेंच व्यास: 80 मिमी साइज़मेन मशीन: 360*220*236 सेमी
प्रमुखता देना:

80mm screw diameter blow moulding machine

,

automatic blow moulding machine for HDPE LDPE PP

,

in mold labeling blow moulding machine

80mm Screw Diameter Automatic Blow Moulding Machine for In Mold Labeling HDPE LDPE PP
Product Overview
The Automatic Blow Moulding Machine is an industrial equipment designed for producing hollow plastic items including bottles, containers, jars, and tanks. The machine heats plastic material until malleable, then uses compressed air to expand the plastic into the shape of the mould cavity. This automated process ensures efficient and consistent manufacturing of hollow plastic products for packaging and storage solutions.
Key Features
  • Fully Automatic Operation: Reduces labor costs by automating preform loading, heating, blowing, and bottle ejection processes.
  • High Production Capacity: Multi-cavity design (2-12 cavities) produces 1,000-20,000 bottles/hour for medium to large-scale production.
  • Consistent Quality: Precise control over heating temperature, stretch ratio, and blowing pressure ensures uniform wall thickness and strength.
  • Energy Efficient: Infrared heating system and servo-driven components minimize power consumption.
  • Quick Mould Change: Rapid transitions between different bottle designs for beverages, oils, cosmetics, and pharmaceuticals.
  • User-Friendly: PLC touchscreen interface with error diagnosis system reduces downtime and maintenance costs.
  • Versatile Applications: Produces PET, HDPE, and PP bottles for various industries including food, beverage, and chemicals.
  • 24/7 Operation: Designed for continuous production with seamless integration into filling and packaging lines.
Technical Specifications
Parameter MP75FD φ80
Material PE PP
Max Container Capacity (L) 0.1
Number of Die (Set) 4
Machine Dimensions (L×W×H) (M) 3.6×2.2×2.36
Total Weight (Ton) 5.5
Clamping Force (KN) 120
Platen Opening Strokes (mm) 180-480
Toggle Stroke (mm) 300
Max Mould Size (W×H) (mm) 460×450
Screw Diameter (mm) 80
Screw L/D Ratio 24
(HDPE) Plasticizing Capacity (kg/h) 100
Total Power (kw) 65.13
Average Energy Consumption (kw) 31
Applications
Beverage Packaging (water, juice, carbonated drinks)
Food Packaging (edible oils, dairy products)
Household & Personal Care (detergents, shampoos)
Pharmaceutical Packaging (medicine bottles)
Chemical & Industrial Packaging (lubricants, pesticides)
Home & Daily Use Products (plastic jugs, storage containers)
Medical & Healthcare Packaging (disinfectant bottles)
Custom & Specialized Packaging (premium cosmetic bottles)
Customization Options
MEPER offers comprehensive customization for the MP75FD Automatic Blow Moulding Machine, certified with CE and ISO9001:2008. Options include In Mold Labeling (IML) and multiple die head configurations (1/2/3/4) for 0-5L bottle production. The machine features a 360×220×236cm main size with 80mm screw diameter. Minimum order quantity is 1 set with 100 sets/month production capacity. Standard export packaging ensures safe delivery within 25-35 work days. Payment terms include L/C and T/T with negotiable pricing.
